A Smarter Way to Manage Multiple HDMI Sources
In modern AV environments, the ability to manage several video sources cleanly and efficiently is no longer optional. Meeting rooms, classrooms, control spaces, houses of worship, live production setups, training facilities, and digital signage installations often rely on multiple HDMI devices at once. A presenter may need to switch between laptops, media players, cameras, document viewers, or conferencing systems without interrupting the visual experience. The Covid SH41-200MV HDMI 2.0 4×1 18G Switcher with Multiview is designed for exactly this type of professional workflow.
This device is a compact HDMI switcher that accepts four HDMI input signals and sends them to one HDMI display output. More importantly, it does more than simple input selection. It includes multiview capability, allowing users to display multiple HDMI sources on a single screen in several layout modes. Covid describes the unit as an HDMI 2.0 4×1 multiviewer and seamless UHD video switcher designed to take four different 4K60Hz HDMI signals and output them to one screen.
Built for 4K60Hz HDMI 2.0 Performance
One of the strongest advantages of the SH41-200MV is its support for modern high-resolution video. The switcher is specified with HDMI 2.0b compliance and 18Gbps video bandwidth, allowing it to support resolutions up to 4K@60Hz. This makes it suitable for professional AV systems where sharp, detailed, and fluid visuals are essential.
This capability is especially valuable in spaces that rely on large-format displays or projection systems. At 4K60Hz, users can present detailed spreadsheets, high-resolution graphics, video content, security feeds, camera outputs, or training materials with strong clarity and smooth motion. For organizations upgrading from older HDMI switching equipment, the SH41-200MV offers a more current standard of video handling without overcomplicating the system.
Four Inputs, One Clean Display Output

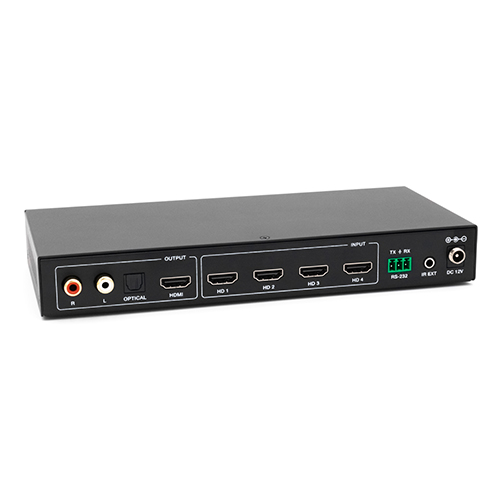

The core function of the SH41-200MV is simple and practical: it allows users to connect up to four HDMI sources and route them to a single HDMI display. The technical specification lists 4 x HDMI IN Type-A female ports and 1 x HDMI OUT Type-A female port.
This makes the switcher useful in any environment where several devices must share one screen. In a conference room, it can connect multiple presenter laptops. In a classroom, it can support a teacher station, media player, camera, and document camera. In a control environment, it can bring several source views together on one display. Instead of constantly changing cables or relying on a cluttered setup, the SH41-200MV centralizes signal management into one dedicated device.
Multiview Layouts for Better Visual Awareness
What separates this model from a basic HDMI switcher is its multiview functionality. The SH41-200MV can show all four connected HDMI sources on a single screen in different configurations. Covid lists eight display modes: Single, PIP, PBP 1, PBP 2, Triple 1, Triple 2, Quad 1, and Quad 2.
This flexibility makes the switcher particularly valuable for monitoring and collaborative use. A user can show one source full-screen, place one signal inside another through picture-in-picture, compare two sources side by side, or arrange multiple feeds together in quad-style layouts. For AV operators, trainers, security teams, and production staff, this means better visibility and faster decision-making. Instead of switching blindly between inputs, users can see multiple sources at once and choose the layout that best supports the moment.
Seamless Switching for Professional Presentations
In professional settings, switching between inputs should feel smooth and intentional. The SH41-200MV supports seamless input channel switching, which helps reduce disruption when moving from one source to another. Covid identifies seamless switching as one of the unit’s key features.
This is important in live presentations, training sessions, and meetings where awkward pauses or black screens can break audience focus. A seamless switcher gives presenters and operators a more polished experience. Whether moving from a laptop presentation to a media player, from a camera feed to a computer screen, or from one source layout to another, the SH41-200MV is designed to support a cleaner AV workflow.
Flexible Audio De-Embedding
The SH41-200MV also includes useful audio handling features. Covid states that the switcher supports audio extraction via RCA and SPDIF, while the technical specification lists output ports including 1 x L/R OUT RCA and 1 x Optical OUT SPDIF.
This gives system designers more freedom when integrating the switcher into a room audio system. Instead of relying only on audio through the HDMI display, users can route audio separately to amplifiers, speakers, mixers, or audio processors. The unit supports audio formats including LPCM, AC3, DD+, DTS, and DTS-HD up to 7.1 channels according to Covid’s product feature list.
Control Options for AV Integrators
A professional AV device should be easy to operate in different environments. The SH41-200MV supports several control methods, including front-panel buttons, an IR remote, and RS-232 commands. Covid specifically promotes the unit as controllable through face buttons, IR remote, and RS-232 command support.
This range of control options makes the device suitable for both simple and integrated installations. In a small meeting room, users can operate it manually or with the included IR remote. In a more advanced AV system, integrators can use RS-232 control to connect the switcher with room automation systems, touch panels, or centralized control processors.
EDID Management and On-Screen Navigation
The SH41-200MV also includes OSD navigation and EDID management, both listed in Covid’s feature set.
These features are valuable because HDMI systems can sometimes become complicated when different sources and displays support different resolutions or formats. EDID management helps the switcher communicate display capabilities to connected source devices more effectively. Meanwhile, on-screen display navigation makes configuration and operation more accessible for users and technicians.
Compact, Durable, and Installation-Friendly
The SH41-200MV is built in a black metal enclosure, giving it a professional appearance and a durable physical structure. The official technical specification lists its dimensions as 220mm wide, 100mm deep, and 30mm high, with a weight of 620g. It also lists power consumption at 10W and operation temperature from 32°F to 104°F / 0°C to 40°C.
Its compact form factor makes it easy to place in equipment racks, under tables, inside lecterns, behind displays, or within AV cabinets. For installers, that small footprint is a major advantage because it allows the switcher to fit into spaces where larger equipment may be impractical.
A Practical Choice for Professional AV Systems
The Covid SH41-200MV HDMI 2.0 4×1 18G Switcher with Multiview is an excellent solution for users who need more than a basic HDMI selector. It combines 4K60Hz video support, HDMI 2.0b performance, four-source switching, multiview layouts, audio de-embedding, EDID management, IR control, RS-232 integration, and a compact metal design.
For meeting rooms, classrooms, training centers, control rooms, houses of worship, presentation spaces, and professional AV installations, this switcher provides a clean and flexible way to manage multiple HDMI sources on one display. If your system needs reliable 4K switching plus the ability to view several sources at once, the SH41-200MV is a strong, practical, and professional-grade choice.
